Topic: Scope ringsPosted: March 28 2018 at 7:11pm |
|
Question. For those of you that have installed an S&K scope mount on you Lee Enfield, which rings do you prefer? Thanks!
|
|
![]() |
|
Goosic
Senior Member
Joined: September 12 2017 Location: Phoenix Arizona Status: Offline Points: 8842 |
Post Options
Thanks(0)
Quote Reply
Posted: March 28 2018 at 7:27pm |
![]() ![]() I don't remember the names of these. Something Quad Something. Found them on eBay for $20.00. Really does a good job of clamping the scope in place. |
|
![]() |
|
Shamu
Admin Group
Logo Designer / Donating Member Joined: April 25 2007 Location: MD, USA. Status: Offline Points: 20510 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 6:00am |
|
I went with the proprietary S&K ones, rather than the weaver/Picatinny rail, because they are the lowest possible setup.
I literally can't get a business card between the mount top & the turret saddle bottom, just a sheet of paper! ![]() |
|
|
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
|
|
![]() |
|
britrifles
Senior Member
Joined: February 03 2018 Location: Georgia, USA Status: Offline Points: 8404 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 6:20am |
|
I find that most mounts give insufficient eye relief unless you only shoot off the bench or standing. I use a cantilever mount, as shown below. Not the same base mount, but you get the idea.
![]() |
|
![]() |
|
Honkytonk
Senior Member
Joined: December 30 2017 Location: Brandon Mb Status: Offline Points: 5190 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 6:35am |
|
I do get the idea. Quite a rig!
|
|
![]() |
|
Goosic
Senior Member
Joined: September 12 2017 Location: Phoenix Arizona Status: Offline Points: 8842 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 11:41am |
|
I put a scope on it with those rings so you can see how it looks. I have no issues with the eye relief either.
![]() ![]()
|
|
![]() |
|
britrifles
Senior Member
Joined: February 03 2018 Location: Georgia, USA Status: Offline Points: 8404 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 12:58pm |
|
Goosic, in the prone position, my head is resting on my right thumb just below the cheek bone (probably quite common for most shooters). In this position, most scope mounts will position the scope such that the eyepiece would be firmly planted in my right eye socket. The No. 4(T) scope position is quite forward which enables sufficient eye relief for prone shooting. Shooting on the bench or in the off hand position the head is held much further back. I cannot shoot my No. 4 prone without the cantilever mount. The actual eye relief of the scope is a factor as well. It might just be me, but I suspect most shooters would have this problem if shooting prone.
|
|
![]() |
|
Macd
Senior Member
Joined: January 26 2018 Location: Canada Status: Offline Points: 195 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 1:54pm |
|
Edit. Wrong quote removed.
Got the same reason I went with Weaver Tip Off. Tight to the base. Can just get a piece of paper to slide between base and centre of scope. |
|
![]() |
|
Honkytonk
Senior Member
Joined: December 30 2017 Location: Brandon Mb Status: Offline Points: 5190 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 3:03pm |
|
Thanks for the info guys!
|
|
![]() |
|
Shamu
Admin Group
Logo Designer / Donating Member Joined: April 25 2007 Location: MD, USA. Status: Offline Points: 20510 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 3:06pm |
|
I'm finding this interesting. When I shoot prone or kneeling my thumb is
in front of the cheekpiece riser, on the wrist of the stock, & my
cheek is on it, so that places my eye considerably further rearwards
then you position.
I tried a Hensoldt Ferro ZF24 As a modern replicant of the Mk32 but couldn't get enough eye relief without some serious stock climbing! So much I eventually gave up & sold the scope! My current setup is darn near perfect for me this way. ![]() ![]() |
|
|
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
|
|
![]() |
|
britrifles
Senior Member
Joined: February 03 2018 Location: Georgia, USA Status: Offline Points: 8404 |
Post Options
Thanks(0)
Quote Reply
Posted: March 29 2018 at 7:15pm |
|
Part of the problem for me is that I need a slightly longer butt stock. In prone position with the PH 5c sight, my eye is quite close to the apature, probably less than 2 inches from it. The bottom edge of my shooting glasses touch the cocking piece of the bolt and have chafed away the 2.5x reader inserts on the lense. The C5, 6 and 7 vertebrae of my neck have been fused together, so I’m not able to lift my head as high as I’d like to, and can just see the sights thru the upper left corner of my glasses.
With a scope on the rifle, it’s impossible for me to shoot prone; the eye piece cannot be much further back than the rear sight position. I can with the No. 4(T), but not with the no gunsmithing type mounts that attach to the rear sight lugs. Shamu, that scope position in the top pic looks good, that would work for me. I need to get myself a smaller scope, perhaps just 3 to 5x, smaller diameter objective, mount as low as possible, that would make a comfortable prone shooting position. |
|
![]() |
|
Shamu
Admin Group
Logo Designer / Donating Member Joined: April 25 2007 Location: MD, USA. Status: Offline Points: 20510 |
Post Options
Thanks(0)
Quote Reply
Posted: March 30 2018 at 5:42am |
|
Do you have eyepiece attachments (Irises, filters) on the 5C as well, some of them are pretty long.
The Hensoldt & ARMS #7 Picatinny to STANAG adapter sound like they'd be perfect for you! They do have one disadvantage though, there is no, zero, adjustment for eye relief because of the conversion mount it only goes in that one exact spot. |
|
|
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
|
|
![]() |
|
britrifles
Senior Member
Joined: February 03 2018 Location: Georgia, USA Status: Offline Points: 8404 |
Post Options
Thanks(0)
Quote Reply
Posted: March 30 2018 at 7:26am |
|
Shamu, I do have the eyepiece attachments but do not use them; they would probably be very close to recoiling into my glasses.
I've not really looked closely at how other shooters take up the prone position. I thought it was quite common for the cheek to be pressed (AKA "cheek weld") to the base of the right thumb that wraps around the butt stock wrist. My head may not be able to tip far enough back to give the clearance that most people get with the aperture sight. I'll have someone take a photo of my shooting position, maybe I'm just different... |
|
![]() |
|
Shamu
Admin Group
Logo Designer / Donating Member Joined: April 25 2007 Location: MD, USA. Status: Offline Points: 20510 |
Post Options
Thanks(0)
Quote Reply
Posted: March 30 2018 at 8:16am |
|
It depends how you were taught I guess. I was always taught to have the head far enough back that you didn't need to break a cheek weld when cycling the bolt, so I cant climb up that close in that position.
Have you ever though of using one of those slip-on rubber butt boots? They give almost an inch of extra stock length without permanent modification. |
|
|
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
|
|
![]() |
|
englishman_ca
Senior Member
Joined: September 08 2009 Location: Almaguin Status: Offline Points: 1094 |
Post Options
Thanks(0)
Quote Reply
Posted: March 30 2018 at 10:17am |
|
An English hold that I use is not to wrap my thumb around the butt stock wrist. The thumb lays on the right side of the wrist pointing forward. That way, I don't accidentally try to shove my thumb up my nose on recoil if the butt stock is a bit short and the cartridge is a bit stout.
The large frame Martini service rifle has a nice little thumb rest engraved into the back of the receiver as a reminder for just this style of hold. |
|
|
.
. Look to your front, mark your target when it comes! |
|
![]() |
|
Macd
Senior Member
Joined: January 26 2018 Location: Canada Status: Offline Points: 195 |
Post Options
Thanks(0)
Quote Reply
Posted: March 30 2018 at 10:34am |
|

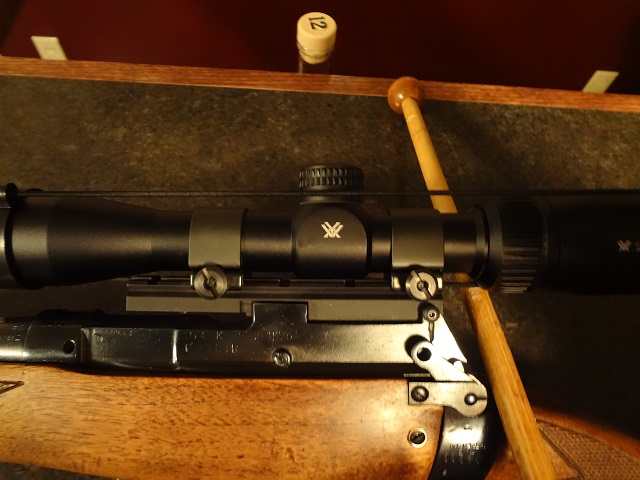

I had to edit my post above as I quoted the wrong post. Here are my
rings. I chose the Vortex scope as it gave me a longer eye relief of
4.7 inches. The rings are Weaver Tip Off.
![]() |
|
![]() |
|
