No.4 Mk1* action bushing/loose forestock
 Post Reply Post Reply Page  <12345>
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
mattri View Drop Down
Groupie
Groupie


Joined: December 25 2023
Location: iowa
Status: Offline
Points: 61 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mattri Quote  Post ReplyReply Direct Link To This Post Posted: January 27 2024 at 2:03pm
Looks great!

I have a borescope you can borrow if you like, it just plugs in to a usb port and you can view it from a laptop etc.  PM me if interested.
Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 20510 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: January 27 2024 at 2:30pm
Which scope do you have?
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
slowindown View Drop Down
Senior Member
Senior Member


Joined: January 16 2024
Location: MS, USA
Status: Offline
Points: 108 		Post Options Post Options   Thanks (0) Thanks(0)   Quote slowindown Quote  Post ReplyReply Direct Link To This Post Posted: January 27 2024 at 2:46pm
Originally posted by mattri mattri wrote:

Looks great!

I have a borescope you can borrow if you like, it just plugs in to a usb port and you can view it from a laptop etc.  PM me if interested.

Thanks. That’s very nice of you.
Back to Top
mattri View Drop Down
Groupie
Groupie


Joined: December 25 2023
Location: iowa
Status: Offline
Points: 61 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mattri Quote  Post ReplyReply Direct Link To This Post Posted: January 27 2024 at 2:56pm
A Teslong.
Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Georgia, USA
Status: Offline
Points: 8404 		Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 5:13am

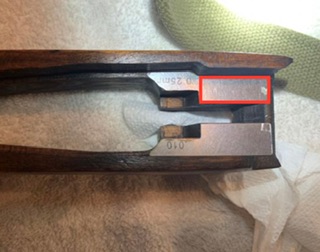

I suggest trimming the shims back a bit, to the size shown in the red box below. They are a bit long and the action body may not sit flat on the shim, held up by the forward area of the shim near the draws.
Back to Top
slowindown View Drop Down
Senior Member
Senior Member


Joined: January 16 2024
Location: MS, USA
Status: Offline
Points: 108 		Post Options Post Options   Thanks (0) Thanks(0)   Quote slowindown Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 5:32am
Originally posted by britrifles britrifles wrote:

I suggest trimming the shims back a bit, to the size shown in the red box below. They are a bit long and the action body may not sit flat on the shim, held up by the forward area of the shim near the draws.




I will do that. I was about to take it back apart and glue them in and stake the front band. Thanks for all of your help.

They sure were pretty though when they were intricately shaped.
Back to Top
slowindown View Drop Down
Senior Member
Senior Member


Joined: January 16 2024
Location: MS, USA
Status: Offline
Points: 108 		Post Options Post Options   Thanks (0) Thanks(0)   Quote slowindown Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 8:51am

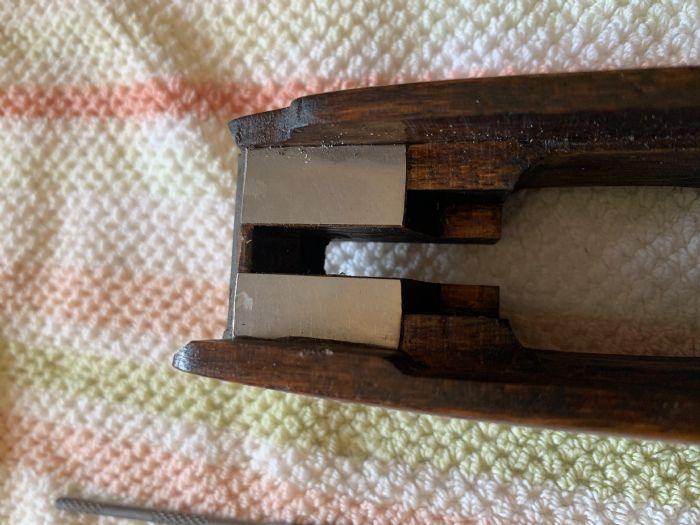

Shims trimmed, fitted and epoxy setting.
Back to Top
Goosic View Drop Down
Senior Member
Senior Member
Avatar

Joined: September 12 2017
Location: Phoenix Arizona
Status: Offline
Points: 8842 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Goosic Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 9:13am
The Highlighted area is overemphasized.
Since you have lifted the reciever .010" away from the woodwork, you no longer have adequate contact against the draws and flats where the reciever should have solid contact with. This will need to be addressed or you can damage the woodwork...
Back to Top
slowindown View Drop Down
Senior Member
Senior Member


Joined: January 16 2024
Location: MS, USA
Status: Offline
Points: 108 		Post Options Post Options   Thanks (0) Thanks(0)   Quote slowindown Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 10:27am
Hmmm.  I can see how the lower horizontal portion can be .010 off but I'm having trouble visualizing how the vertical portion is?
Back to Top
Goosic View Drop Down
Senior Member
Senior Member
Avatar

Joined: September 12 2017
Location: Phoenix Arizona
Status: Offline
Points: 8842 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Goosic Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 10:31am
Like I had stated, the illustration is overemphasized. There will still be a gap between the reciever and draw that will need to be addressed.
Back to Top
slowindown View Drop Down
Senior Member
Senior Member


Joined: January 16 2024
Location: MS, USA
Status: Offline
Points: 108 		Post Options Post Options   Thanks (0) Thanks(0)   Quote slowindown Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 10:40am
Originally posted by Goosic Goosic wrote:

Like I had stated, the illustration is overemphasized. There will still be a gap between the reciever and draw that will need to be addressed.

Is brass ok to use?  I have 2 .010 brass feeler gauges remaining from the ones I sourced the top steel shim from.
Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Georgia, USA
Status: Offline
Points: 8404 		Post Options Post Options   Thanks (1) Thanks(1)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 1:28pm
A .010 inch vertical lift of the back of the action body in the forend makes very little difference in fit of the draws due to the associated angles involved. There is indeed a shallow closing angle between the back face of the forend and the angle of the draws as the action body is lowered into the forend, but this is very slight.

You won’t damage the forend. But, if you find the forend can be moved fore/aft with the front trigger guard screw backed off a few turns this can be addressed if need be.
Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 20510 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 3:09pm
Yep, this.
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
slowindown View Drop Down
Senior Member
Senior Member


Joined: January 16 2024
Location: MS, USA
Status: Offline
Points: 108 		Post Options Post Options   Thanks (0) Thanks(0)   Quote slowindown Quote  Post ReplyReply Direct Link To This Post Posted: January 28 2024 at 3:47pm
Thanks for all of your help, gentlemen. The rifle is shooting great!
Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 20510 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: January 29 2024 at 2:43pm
Excellent!
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
A square 10 View Drop Down
Special Member
Special Member
Avatar
Donating Member

Joined: December 12 2006
Location: MN , USA
Status: Offline
Points: 16998 		Post Options Post Options   Thanks (0) Thanks(0)   Quote A square 10 Quote  Post ReplyReply Direct Link To This Post Posted: January 29 2024 at 4:56pm
i think its looking good , nice work ,
Back to Top
