No4 Fazerkeley Mk2

 Post Reply Post Reply Page  12>
Author
Message
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Topic: No4 Fazerkeley Mk2
    Posted: March 06 2021 at 9:03pm
Howdy all,

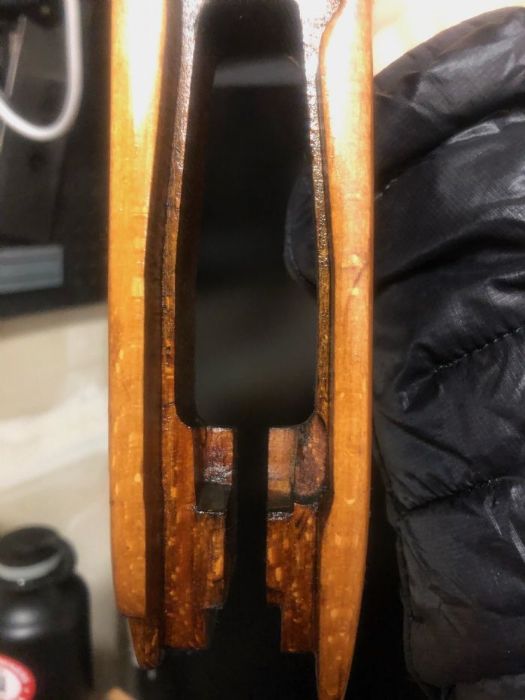

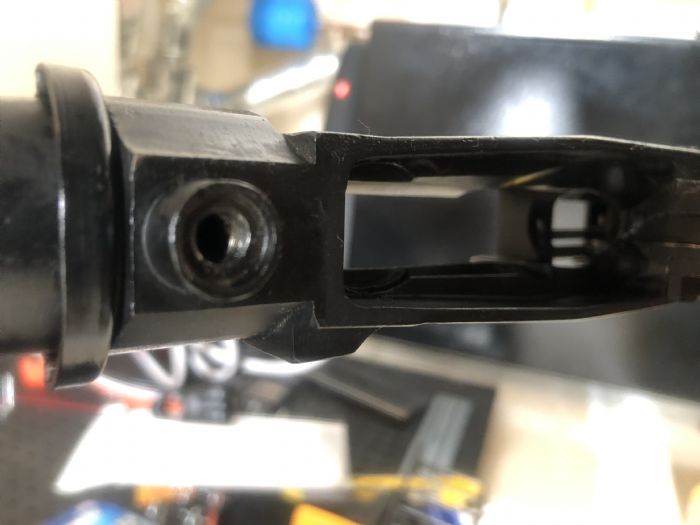

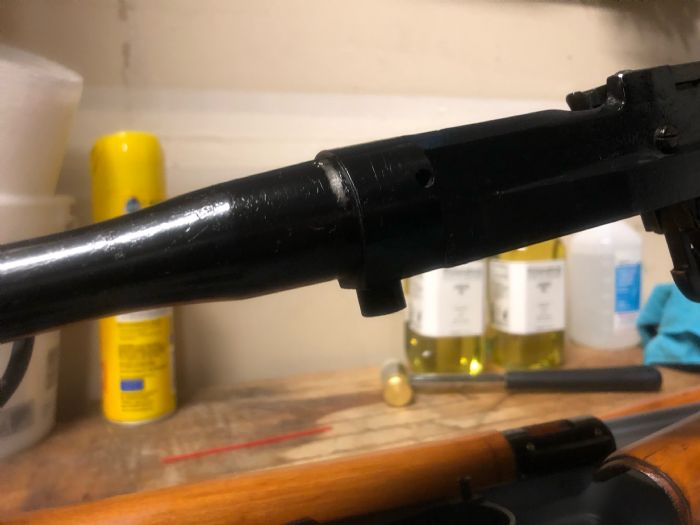

After opening up my No5, I got curious and took my No4 apart for linseed treatments.  I've been reading and watching a ton of new material since I first got the No4 and noticed the internals are quite different (inexperience? Guilty!) I took a couple of photos that maybe some of you can help me with.  I'm just curious if everything looks normal to you guys here.  I still haven't shot it yet but I'm curious: does all of this look normal for a Fazerkely Mk2?


Back to Top
Sponsored Links


Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 06 2021 at 9:11pm

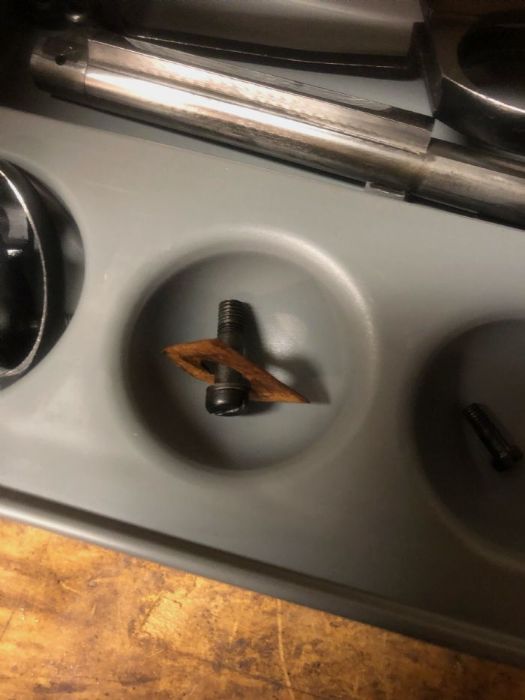

Also, I noticed there's not a pillar screw in this thing but there is some sort of material that came out with the action screw.

Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 06 2021 at 9:16pm
Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 13639
Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 10:05am
That is not "normal", or "Issue"!
there was an accurizing trick with a metal spacer fitted between the top of the bottom metal & the fore-stock bottom, bit thats not it.
There definitely should be the pillar.
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 10:13am
Gotcha. Where would a guy find a proper Mk2 pillar for one of these things? Does everything else look okay in there?
Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 10:14am
Shamu, also, if you look at the screw closely, there appears to be a washer between the screw head and where it would fit into the wood. I guess I’m having trouble understanding what you mean.
Back to Top
Zed View Drop Down
Special Member
Special Member
Avatar
Donating Member

Joined: May 01 2012
Location: France
Status: Offline
Points: 4313
Post Options Post Options   Thanks (0) Thanks(0)   Quote Zed Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 10:31am
FlyPiper907.

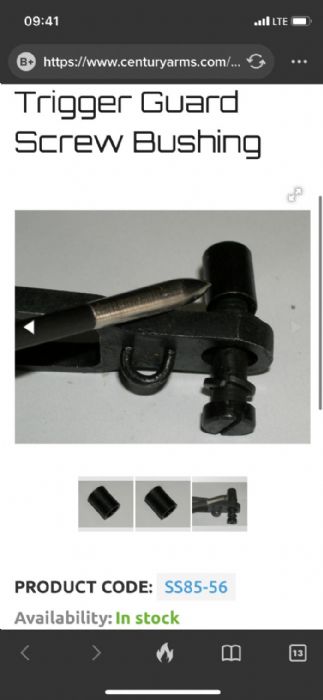

If you need a spacer for the main screw, PM me your details. I'll send you one.
I bought a box of 10 of these a few months back; because I was missing one from my L39. So have a few spare!
It's nice to be important, but it's more important to be nice!
Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 10:43am
Back to Top
Zed View Drop Down
Special Member
Special Member
Avatar
Donating Member

Joined: May 01 2012
Location: France
Status: Offline
Points: 4313
Post Options Post Options   Thanks (0) Thanks(0)   Quote Zed Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 12:15pm
That's it!
It's nice to be important, but it's more important to be nice!
Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 12:21pm
Cool, I’ve been hearing these may need to be professionally fitted. Is there any truth to that or is it a “one size fits all thing”? Assuming it’s t he latter, how do I know when it’s tight enough?
Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 12:39pm
Again, I appreciate all your guys’ help and am really sorry about all of the questions. I’m working from a fairly remote location (Alaska) and my experience is limited. I’m trying to become self-sufficient in working on these things properly without screwing anything up; my current “cirriculum” consists of Riflechair’s videos and this forum. Local knowledge here in Alaska seems quite limited, even with the local gunsmiths. Thanks again, guys.
Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Atlanta, GA
Status: Offline
Points: 3090
Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 12:48pm
There is a bit of a trick to fitting one.  If it is too long, the action body and chamber reinforce will not be contacting the forend.  It must make firm contact at these locations.

Install the bushing and tighten the main screw.  See I if the barreled action can move up and down in the forend (it probably will).  If it does, the bushing is too long and you need to file one end of it. But don’t over do it, if you file it too short, it will not serve its purpose.

When you get it close (removed all vertical movement of the barreled action in the forend) remove the bushing and snug up the main screw.  Mark the location on the main screw where it tightens to a reference point on the trigger guard, then fit the bushing and tighten the screw.  You want the screw to tighten up on the bushing at the same point, or slightly before, it tightened up without the screw.

Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 13639
Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 1:20pm
Not the washer as shown in the pic of the main screw.
Its a flat shaped sort of rectangular plate. It was only used as part of a match accurizing process so you probably don't have one. It fills the space at the front end of the trigger guard so its about the same size & shape as the recess.
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 2:03pm
Shamu,

You’re saying this rifle doesn’t need a pillar?
Back to Top
FlyPiper907 View Drop Down
Senior Member
Senior Member


Joined: January 31 2021
Location: Alaska
Status: Offline
Points: 142
Post Options Post Options   Thanks (0) Thanks(0)   Quote FlyPiper907 Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 2:06pm

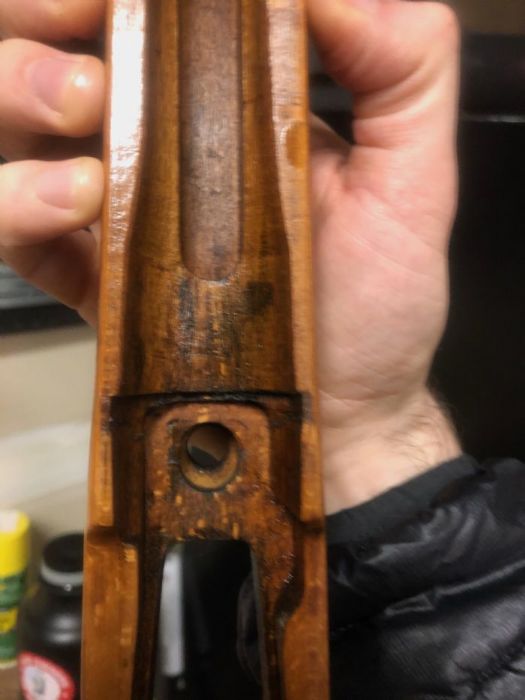

Here’s a better view of where that screw goes when it’s all together:

Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Atlanta, GA
Status: Offline
Points: 3090
Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: March 07 2021 at 2:27pm
Some rifles that were set up for competition had the bushing removed and the trigger guard is shimmed up to give larger contact surface with the forend.   My Fulton Regulated No. 4 has this configuration.  Because of this, I don’t leave the main screw tightened while in storage.
