Bore erosion, pitting and tool marks

 Post Reply Post Reply Page  <123
Author
Message
DarioPirovano View Drop Down
Senior Member
Senior Member
Avatar

Joined: May 20 2023
Location: Italy
Status: Offline
Points: 219
Post Options Post Options   Thanks (0) Thanks(0)   Quote DarioPirovano Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 7:18am

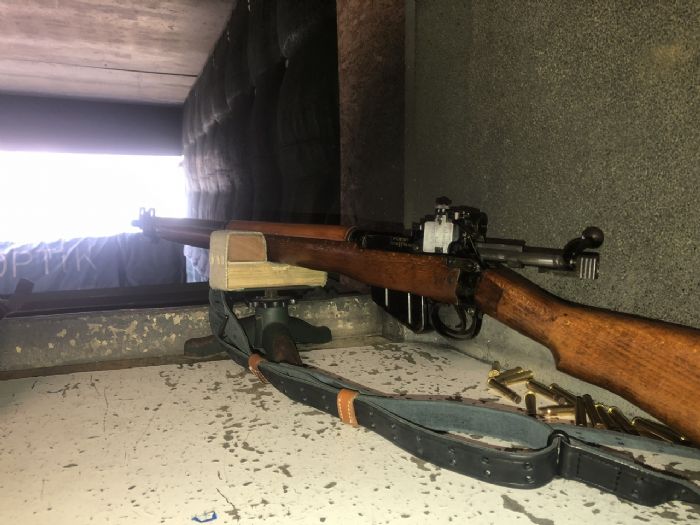

Today went to the range with the no4 mk2, unexpectedly no fouling shots needed.

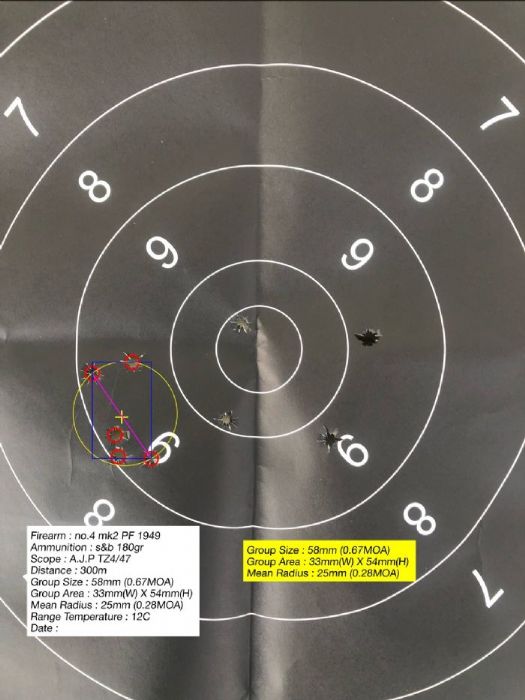

300mt sitting at the bench, light was constantly changing as you can see in the target the group was moving 1/2 moa when sun light started hitting the target, today sky is full of clouds with pretty heavy wind.
I think tz4/47 is far superior to the ph5c.
After 20 shots:


Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Georgia, USA
Status: Offline
Points: 8404
Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 10:31am
Excellent shooting!

I’m curious why you think the TZ sight is superior to the 5C?

I see 9 shots on the target, do you not include all the shots when determining the size of the group? Those 9 look to have grouped in under 2 MOA which is exceptional for a No. 4 with factory ammo.


Back to Top
DarioPirovano View Drop Down
Senior Member
Senior Member
Avatar

Joined: May 20 2023
Location: Italy
Status: Offline
Points: 219
Post Options Post Options   Thanks (0) Thanks(0)   Quote DarioPirovano Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 10:49am
Thank you!
I believe it’s superior because of adjustments, in the tz4/47 i found a true 1/2 moa or probably a little less instead of the 0.65 i found with the ph5c, then it’s in the manufacture, better quality in my opinion, design apart, the tz suffer from iris holder canting on the windage arm because of high tolerances, an easy fix by putting a 0.1mm sheet under the windage arm tracks to tight the gap.
No they are just 9, usually I charge the magazine with 5 rds per time to count,my was friend taking to me while shooting, I put one more in the previous target
Back to Top
DarioPirovano View Drop Down
Senior Member
Senior Member
Avatar

Joined: May 20 2023
Location: Italy
Status: Offline
Points: 219
Post Options Post Options   Thanks (0) Thanks(0)   Quote DarioPirovano Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 10:50am
By 0.65 I mean inches at 100yds.
Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Georgia, USA
Status: Offline
Points: 8404
Post Options Post Options   Thanks (0) Thanks(0)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 12:46pm
Correct, the PH 5C sight is 0.010 inches per four clicks, this works out to about 1.25 MOA.
Back to Top
DarioPirovano View Drop Down
Senior Member
Senior Member
Avatar

Joined: May 20 2023
Location: Italy
Status: Offline
Points: 219
Post Options Post Options   Thanks (0) Thanks(0)   Quote DarioPirovano Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 12:54pm
Exactly Geoff
Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 20510
Post Options Post Options   Thanks (0) Thanks(0)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 1:35pm
Shimming the mount is pretty normal.
Theres no "gauging requirement" on the side wall of the receiver!
I agree the TZ is a bit nicer.
That's the result of the infamous "Enfield Inch" Confused
Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
DarioPirovano View Drop Down
Senior Member
Senior Member
Avatar

Joined: May 20 2023
Location: Italy
Status: Offline
Points: 219
Post Options Post Options   Thanks (0) Thanks(0)   Quote DarioPirovano Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 1:48pm
Yes Shamu, the ph5c on my no4 mk1 is canting to the right, I will shim it to make it level.
But what if it was made on purpose to compensate the left canting of the rifle when sling supported?
Back to Top
britrifles View Drop Down
Senior Member
Senior Member
Avatar

Joined: February 03 2018
Location: Georgia, USA
Status: Offline
Points: 8404
Post Options Post Options   Thanks (1) Thanks(1)   Quote britrifles Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 2:04pm
I’ve shot my No.4 7.62 (1:12 right hand twist barrel) out to 1000 yds with the PH5C and the lateral POI tracks very nicely with increasing range (lateral POI does not change with range in calm conditions).   If the sight was canted, you would see the groups moving to the left or right as the range increases. You would also see elevation POI changes as you adjust the rear sight left or right. I’ve never seen this with a PH 5C.

Bullet spin drift is fairly insignificant out to 1000 yards (about 1 MOA at 1000x).  Beyond that, it begins to take a significant effect.

By the way, you will get significant lateral aiming errors if you cant the rifle to one side or the other, especially at long range. The trick is to hold the rifle the same way every shot, to within +/- a few degrees.  Easier to do with a scope, but can be done with irons too.


Back to Top
Shamu View Drop Down
Admin Group
Admin Group
Avatar
Logo Designer / Donating Member

Joined: April 25 2007
Location: MD, USA.
Status: Offline
Points: 20510
Post Options Post Options   Thanks (1) Thanks(1)   Quote Shamu Quote  Post ReplyReply Direct Link To This Post Posted: February 25 2024 at 4:55pm
It really wasn't.
If you don't shim it for vertical (& horizontal) alignment as you make elevation or windage adjustments you'll also be applying a little of the opposite adjustment also because of the canting.

Look back at the history & you'll se the PH5 series stared out with the PH5A, with the SMLE mount, which had the "long dog leg" to mount to the early bolt-mounted safety mounting holes. The instructions even say to "heat & bend, or shim" to fit to an non-gauged area (the butt socket). That was in turn a development of the earlier No9 series!

The 5C was essentially a 5A with a different mounting bracket for the No4 series, & carried the "shim to fit" legacy from its parent version. Its also why "matching" sight arms & bases are a big deal This was Victorian era hand-fitting of precision parts, like the dovetail between arm & base, not modern "plug & Play" Confused

There were a lot of "legacy" features in the development of the series. That was a big part of the fascination with those older target sights!




Don't shoot till you see the whites of their thighs. (Unofficial motto of the Royal Air Force)
Back to Top
